Wharf Facilities
Yanda Wharf is located outside the flood control embankment on the south bank of the 3 # harbor basin in Dongzao Port Operation Area in Lvsi Port Area of Nantong Port. The length and width of the Wharf are 360m and 24m respectively. The design elevation of the Wharf surface is 4.8m (national elevation 85), and the design elevation of the mud surface at the front of the wharf is -12.70m.

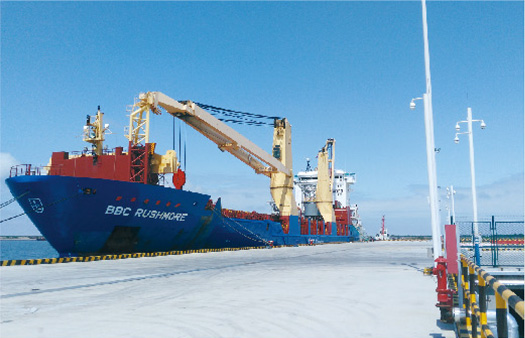

50000tons
Area: Wharf front east section Specification: length of berth: 171m Hydraulic structure and 20000 ton general cargo ship

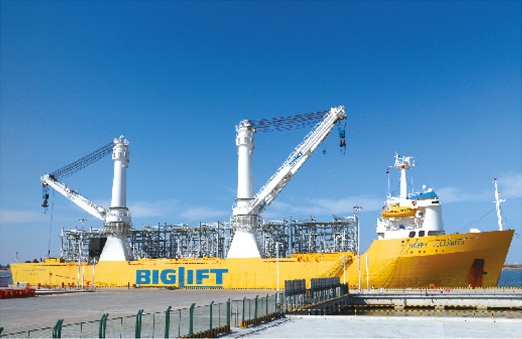

10000tons
Area: Wharf front east section Specification: length of berth: 171m Hydraulic structure and 50000 ton general cargo ship

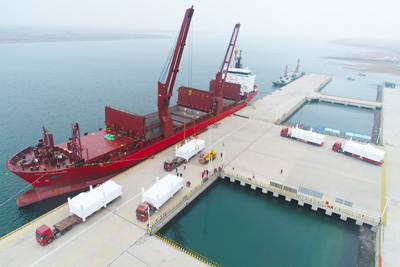

Approach bridge and slide way
One approach bridge and two slide ways are used to connect the rear edge of the wharf with the land area. The approach bridge is 43.7m long and 12m wide. The average length of the two slideways is 43.7m, and the width is 57.56m and 37.56m respectively.
Steel gate
In order to ensure the passage of transport vehicles entering and leaving the wharf, three steel gates are set on the seawall with the approval of Nantong Water Conservancy Bureau, the width of which is 1 5m, 66m and 46m respectively, the top elevation of the gate bottom plate is 5.5m, the height of the steel gate is 3m, the top elevation is 8.5m and the height of the flood control dike top is the same.
