Loading Process
Raw material berth loading and unloading process

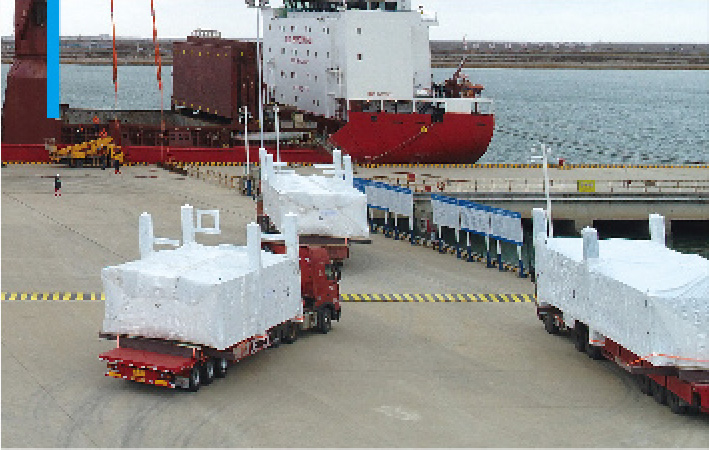

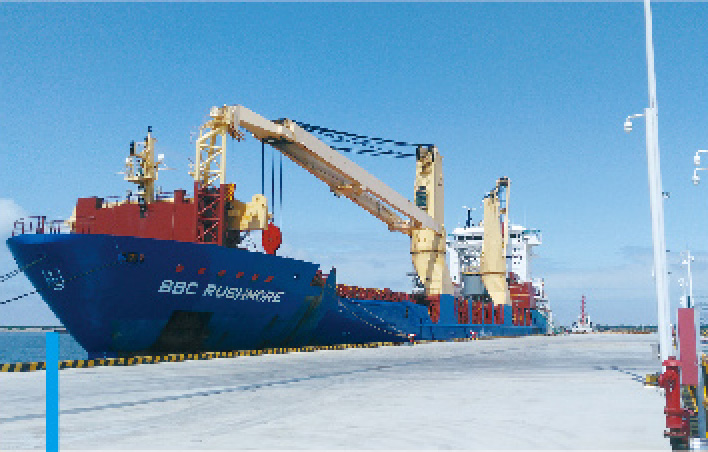

According to the features of the berthing ship types, loading and unloading cargo types, land area of harbor and port logistics conditions, the port's raw material berth loading and unloading are handled by mobile cranes, and the goods are transported by traction flatbed trucks.
Loading process of large-size semi-submersible barge berth

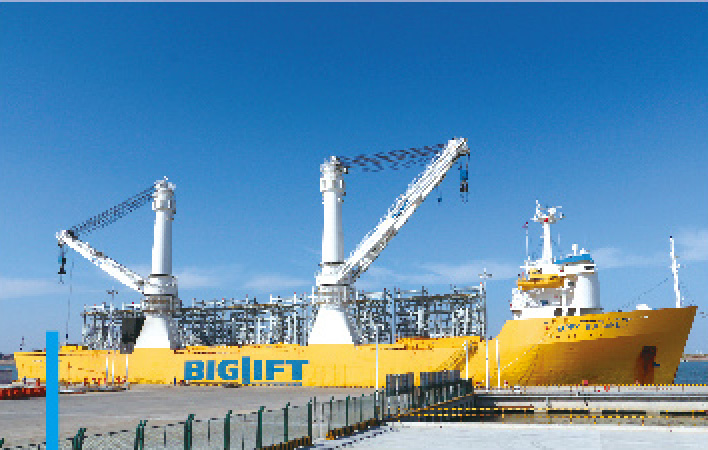

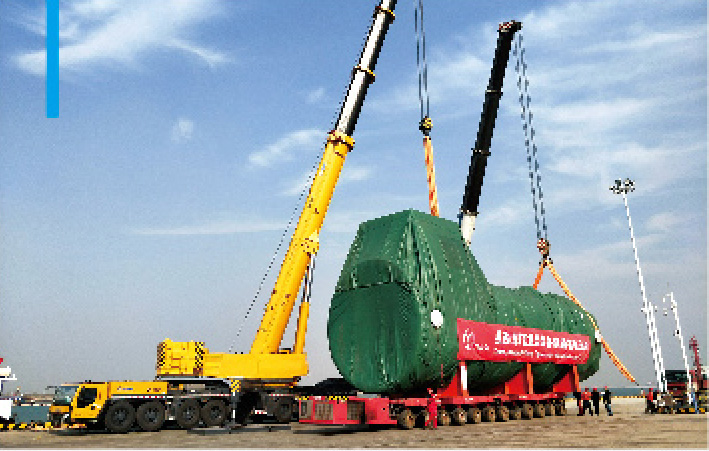

The semi-submersible barge berth for large-size shipment adopts roll-on/roll-off process. Roll-on /roll-off is the rolling of cargo from the wharf onto or off the cargo deck of the semi-submersible ship by self-propelled flatbed truck or tracion moving device, or roll off the cargo deck.
Loading process of rough products:01> 02> 03> 04> 05
Ship unloading process:05> 04> 02> 03> 01
01
Rear yard or plant area
02
Tractor
03
Flat car
04
Truck crane
05
Ship
Loading process of semi submersible barge berth:01> 02> 03> 04> 05(Current operation mode)
Loading process of semi submersible barge berth:01> 06> 05(Intelligent mode)
01

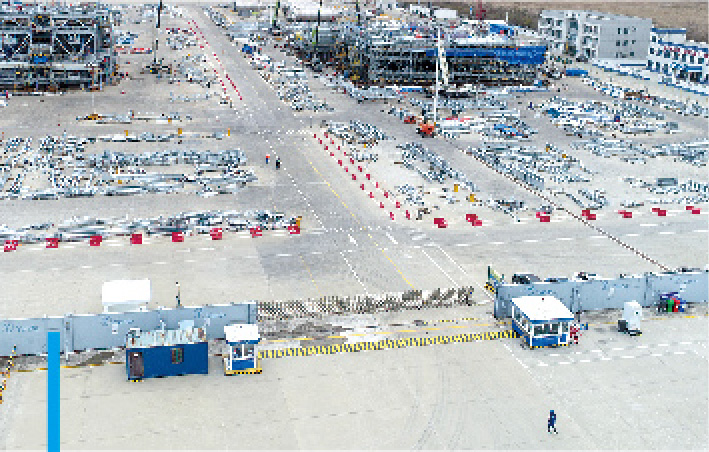

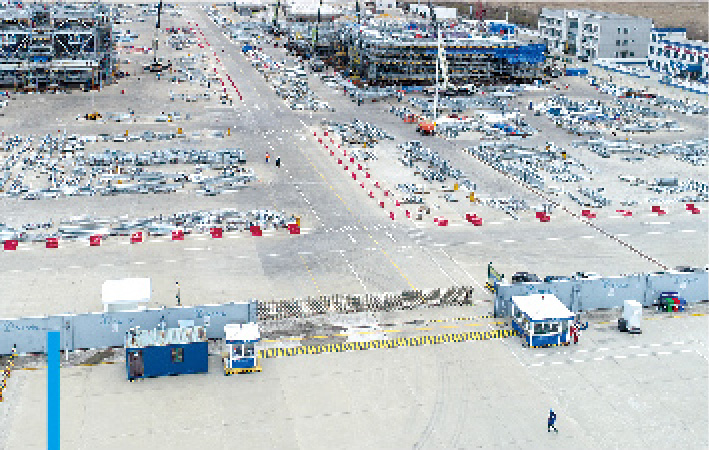

Assembly area of slideway
02
Tractor
03
Flat car
04
Truck crane
05
Ship
06

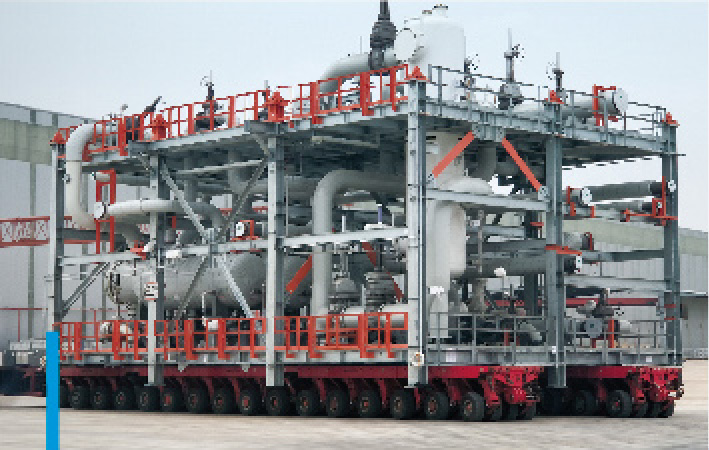

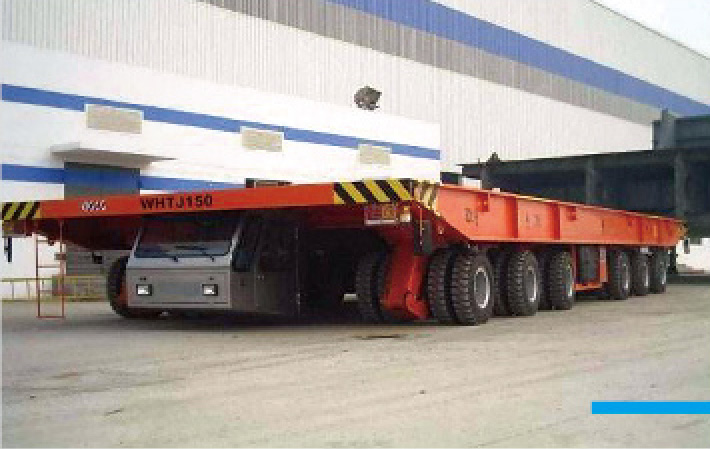

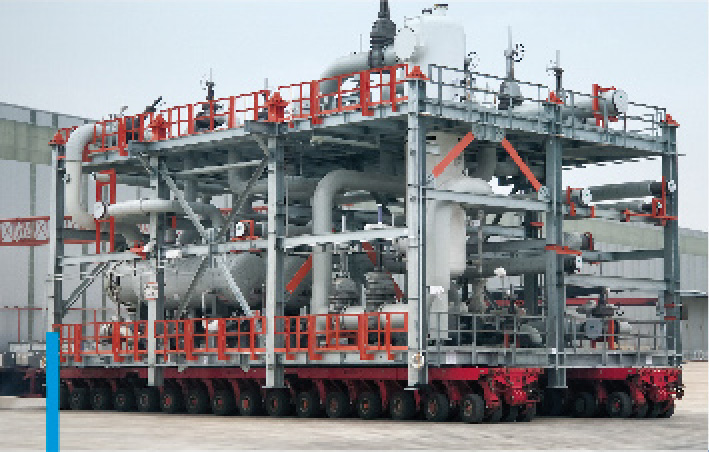

Hydraulic remote control self-propelled power module flat car
